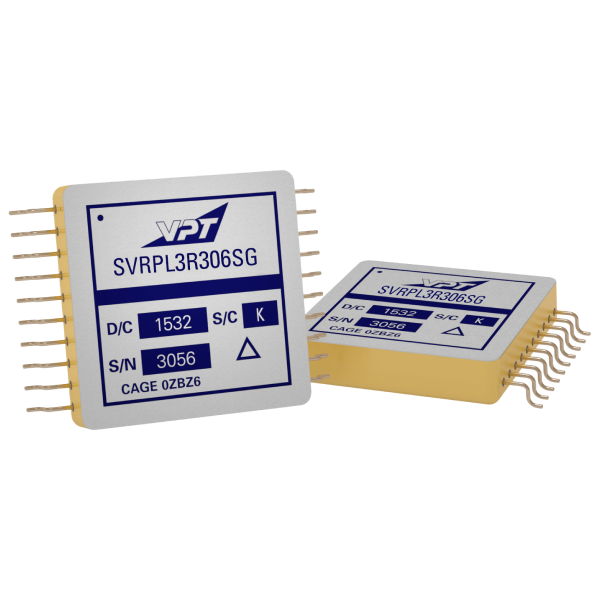

SVRPL3 R306 SG

Point of Load DC-DC Converters

SVRPL Series

The SVRPL Series of space qualified point-of-load DC-DC converters is specifically designed for the harsh radiation environment of space applications and is designed in accordance with the Aerospace TOR requirements. Performance is guaranteed through the use of hardened semiconductor components and analysis.

View Datasheet
Request a QuoteContact Sales

Select Output Voltage

0.8 V to 3.8 V (gull-wing)

Output Power/Current6 A
Output Voltage0.8 V to 3.8 V
Nominal Input Voltage5 V
Continuous Input Voltage Range3.1 V to 5.5 V
# of Outputs1
Total Dose (TID)100 krad(Si)
Single Event Effects (SEE)85 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962R20218

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
