459 Results
Product | Datasheet | Product Type | TID | SEE | Temp. Range | Vin | Output Power/Current | Output Voltage | # Of Outputs | Series Image |
---|---|---|---|---|---|---|---|---|---|---|

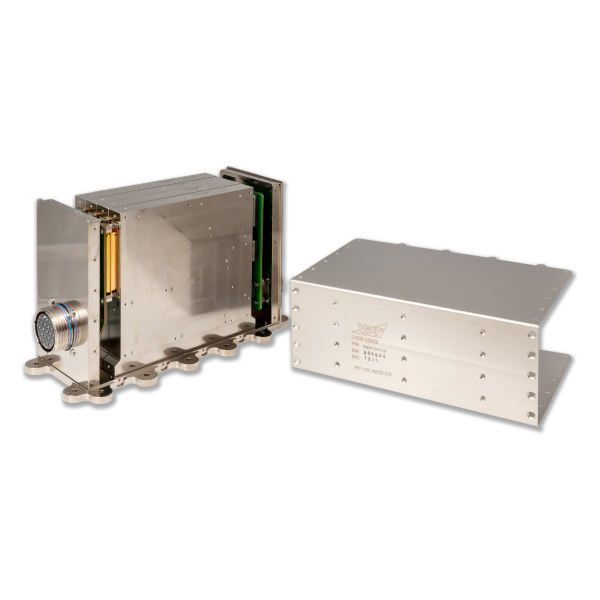

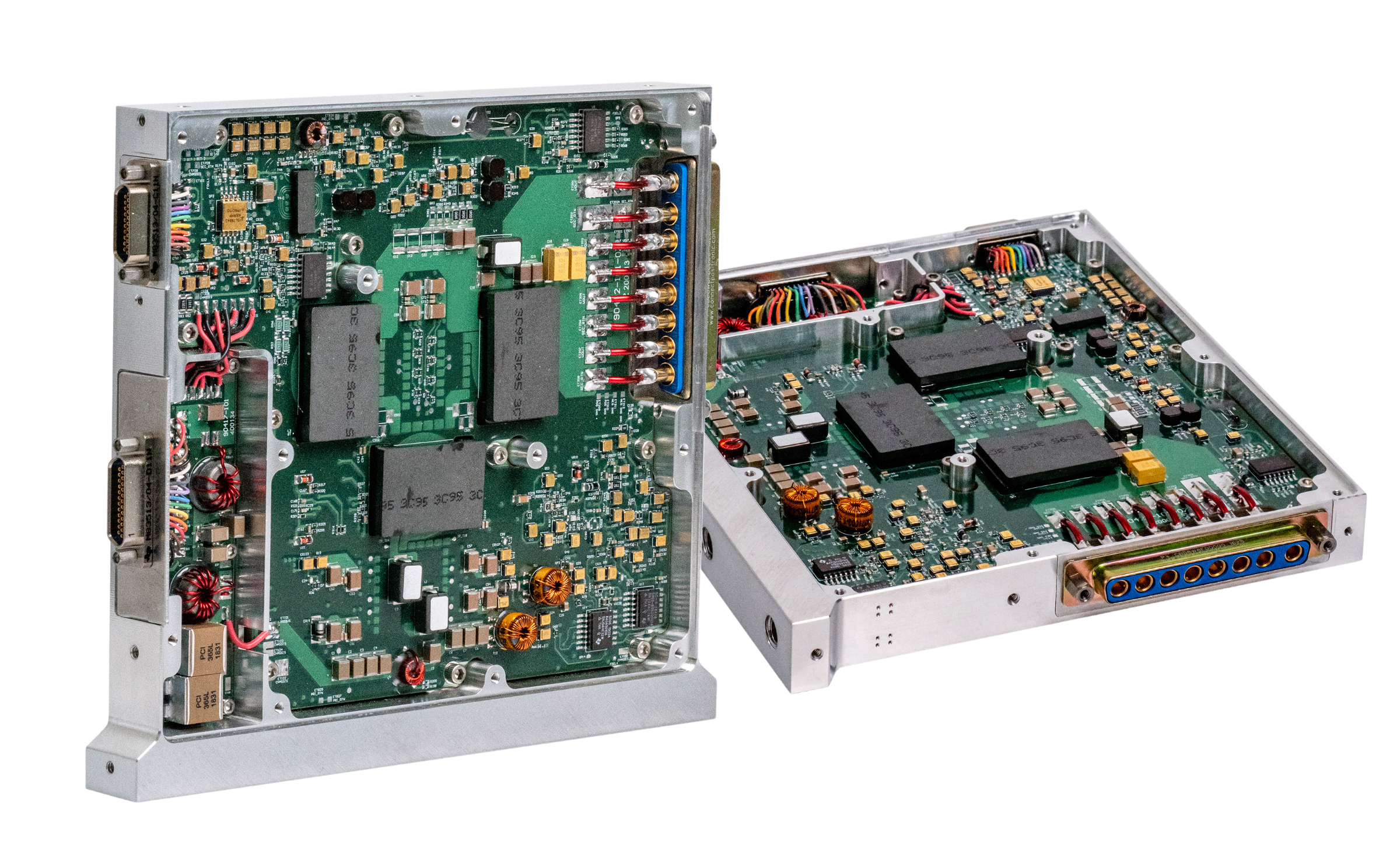

SGRBX | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35°C to +85°C | 120 V | 1600 W | 28 V | 1 | |
SGRB12018S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35°C to +85°C | 120 V | 400 W | 18 V | 1 | |
SGRB90433 | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35°C to +85°C | 100 V | 400 W | 16 V | 1 | |
SGRB12050S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35°C to +85°C | 120 V | 400 W | 50 V | 1 | |
SGRB12028S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35 °C to +85 °C | 120 V | 400 W | 28 V | 1 | |
SGRB12015S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -35°C to +85°C | 120 V | 396 W | 15 V | 1 | |

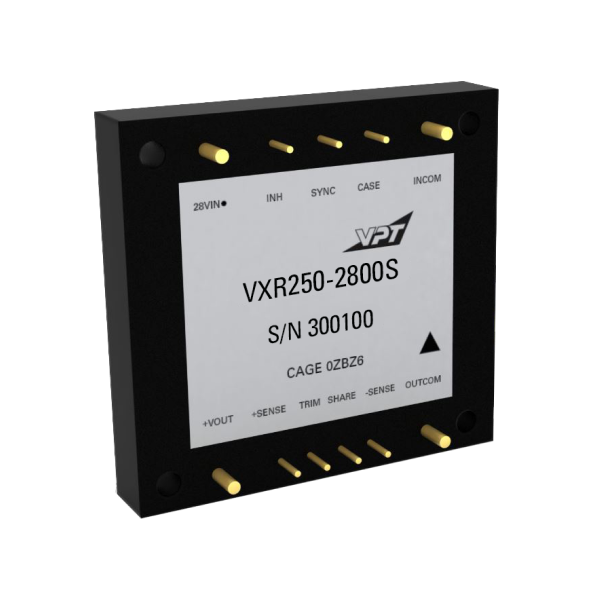

VXR250-2828S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 250 W | 5 V | 1 | |
VXR250-2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 250 W | 15 V | 1 | |
VXR250-2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 250 W | 12 V | 1 | |
VXR250-2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 250 W | 28 V | 1 | |
DV200-2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 200 W | 15 V | 1 | |
DV200-2815D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 200 W | ±15 V | 2 | |
DV200-2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 175 W | 12 V | 1 | |
DV200-2812D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 175 W | ±12 V | 2 | |
DV200-27028S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 175 W | 28 V | 1 | |
DV200-27015S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 175 W | 15 V | 1 | |
DV200-27012S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 175 W | 12 V | 1 | |
DV200-27015D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 175 W | ±15 V | 2 | |
DV200-27012D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 175 W | ±12 V | 2 | |
VXR250-283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 165 W | 3.3 V | 1 | |
DV200-2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 150 W | 5 V | 1 | |
DV200-2805D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 150 W | ±5 V | 2 | |
DV200-27005S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 150 W | 5 V | 1 | |
DV200-27005D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 150 W | ±5 V | 2 | |

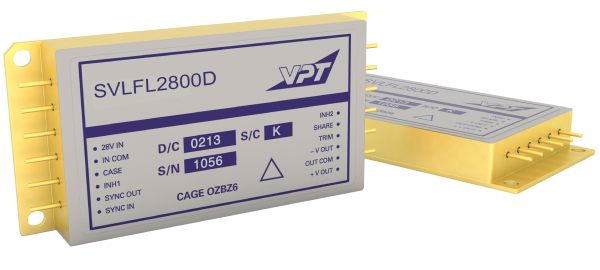

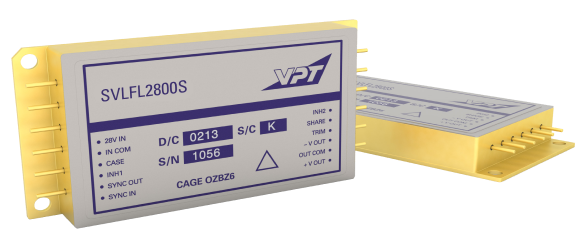

SVLFL2815S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 120 W | 15 V | 1 | |
SVLFL2815D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 120 W | ±15 V | 2 | |

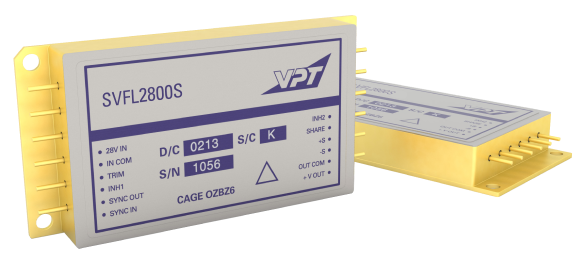

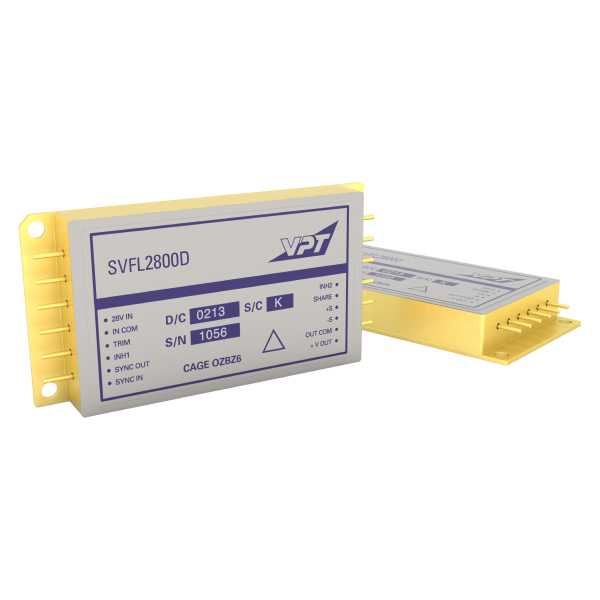

SVFL2815S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 120 W | 15 V | 1 | |
SVFL2815D | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 120 W | ±15 V | 2 | |

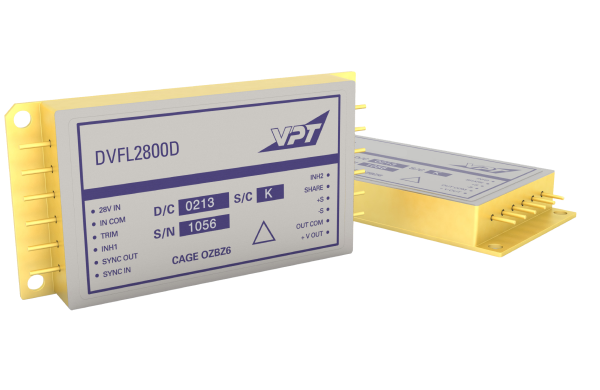

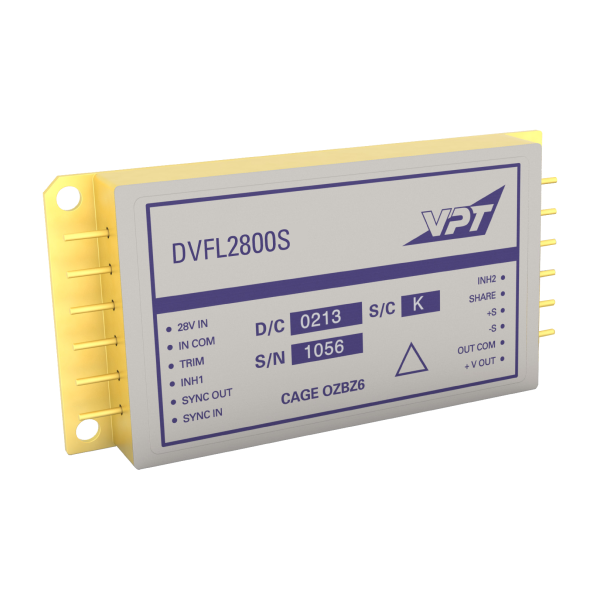

DVFL2818S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 120 W | 18 V | 1 | |
DVFL2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 120 W | 15 V | 1 | |
DVFL2815D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 120 W | ±15 V | 2 | |
DVFL2828S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 115 W | 28 V | 1 | |
SVLFL2812S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 110 W | 12 V | 1 | |
SVLFL2812D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 110 W | ±12 V | 2 | |
SVFL2812S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 110 W | 12 V | 1 | |
SVFL2812D | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 110 W | ±12 V | 2 | |
DVFL2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 110 W | 12 V | 1 | |
DVFL2812D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 110 W | ±12 V | 2 | |

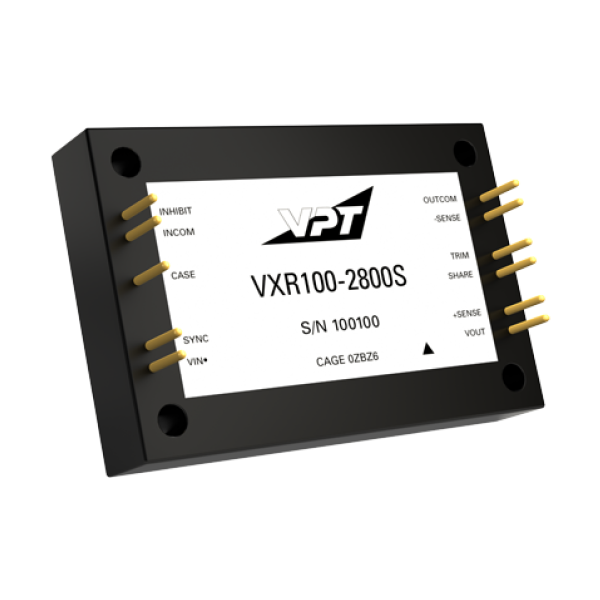

VXR100-283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 3.3 V | 1 | |
VXR100-2818S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 18 V | 1 | |
VXR100-2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 15 V | 1 | |
VXR100-2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 12 V | 1 | |
VXR100-2807S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 7 V | 1 | |
VXR100-2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 5 V | 1 | |

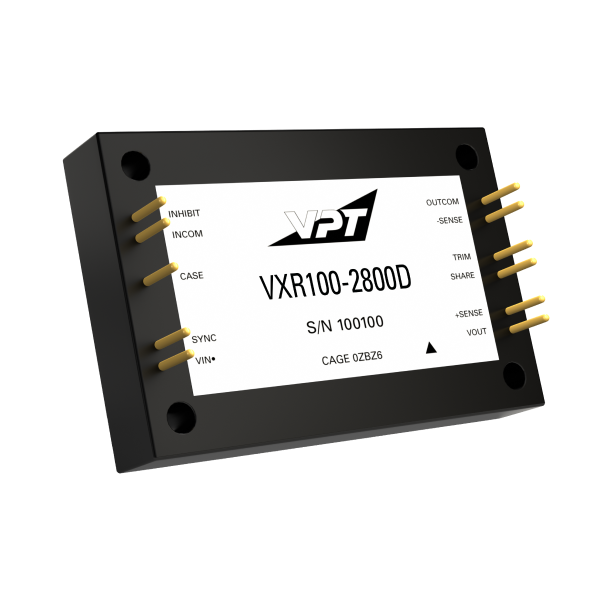

VXR100-283R33R3D | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 3.3 V | 2 | |
VXR100-281515D | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 15 V | 2 | |
VXR100-281212D | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 12 V | 2 | |
VXR100-280505D | Datasheet | DC-DC Converters | NA | NA | -55°C to +105°C | 28 V | 100 W | 5 V | 2 | |

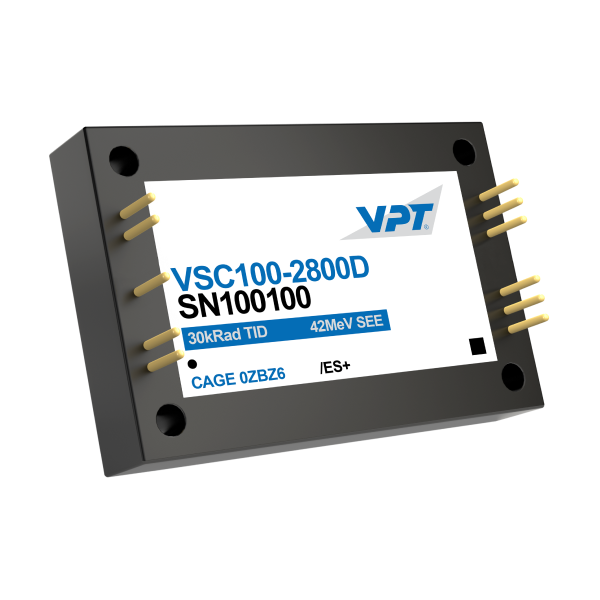

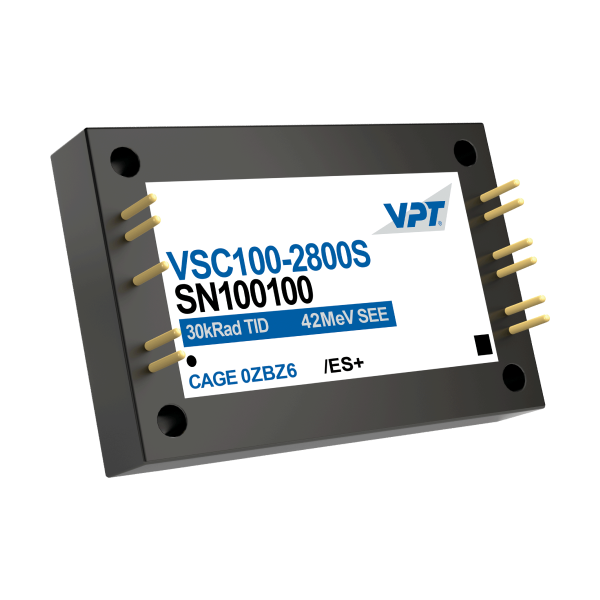

VSC100-2815S | Datasheet | DC-DC Converters | 30 krad(Si) | 42 MeV/mg/cm² | -55°C to +100°C | 28 V | 100 W | 15 V | 1 | |
VSC100-2812S | Datasheet | DC-DC Converters | 30 krad(Si) | 42 MeV/mg/cm² | -55°C to +100°C | 28 V | 100 W | 12 V | 1 | |
VSC100-2805S | Datasheet | DC-DC Converters | 30 krad(Si) | 42 MeV/mg/cm² | -55°C to +100°C | 28 V | 100 W | 5 V | 1 | |

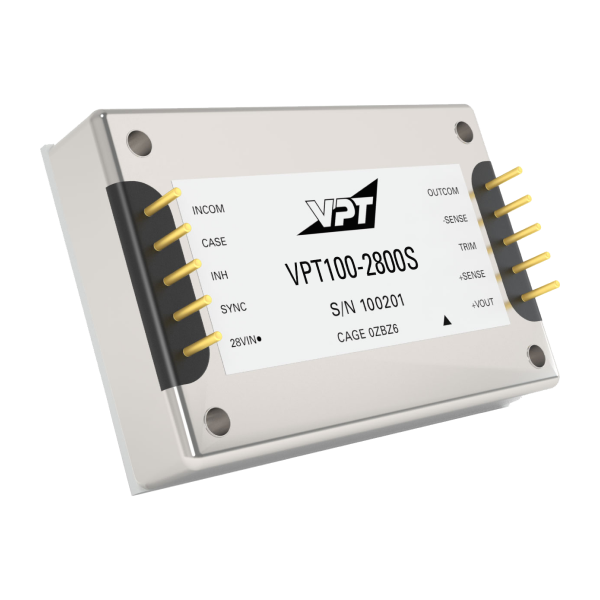

VPT100-2828S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 28 V | 1 | |
VPT100-2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 15 V | 1 | |
VPT100-2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 12 V | 1 | |
VPT100-2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 5 V | 1 | |

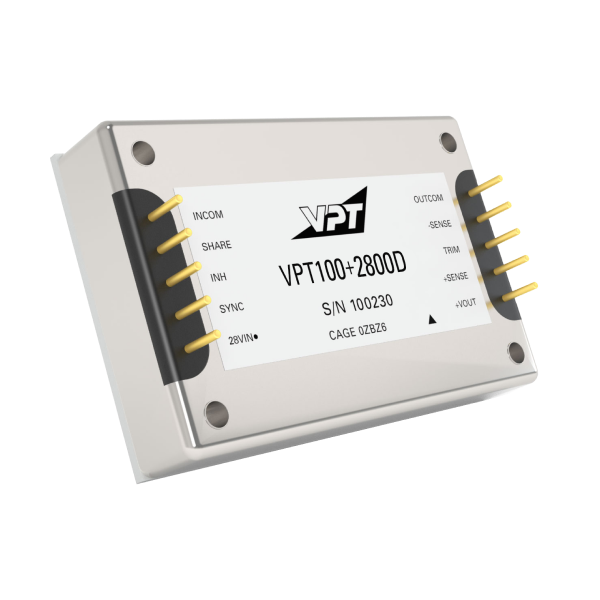

VPT100+2828S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 28 V | 1 | |
VPT100+2815S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 15 V | 1 | |
VPT100+2812S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 12 V | 1 | |
VPT100+2807S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 7 V | 1 | |
VPT100+2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 5 V | 1 | |
VPT100+2815D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | ±15 V | 2 | |
VPT100+2812D | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | ±12 V | 2 | |

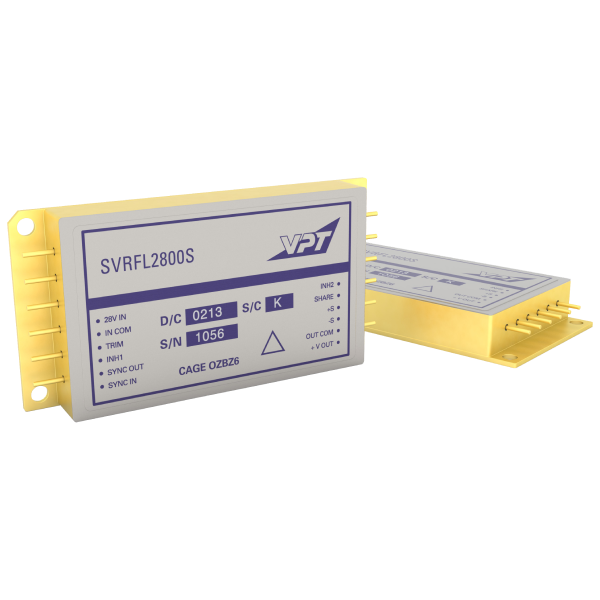

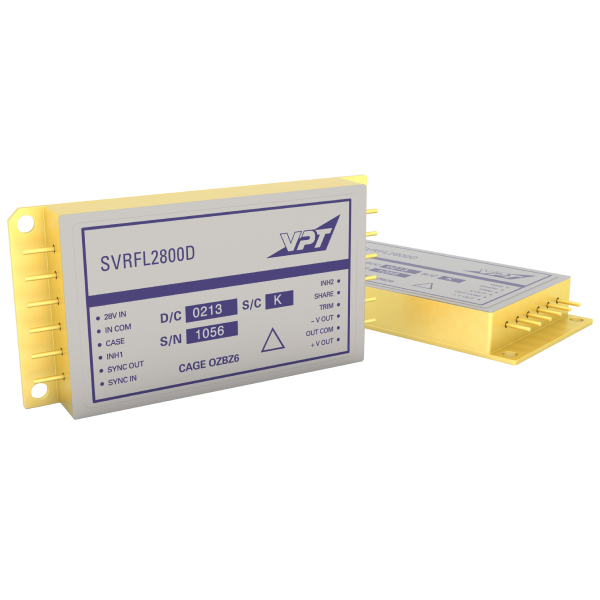

SVRFL2815S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | 15 V | 1 | |
SVRFL2812S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | 12 V | 1 | |
SVRFL2805S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | 5 V | 1 | |
SVRFL2815D | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | ±15 V | 2 | |
SVRFL2812D | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | ±12 V | 2 | |
SVRFL2805D | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | ±5 V | 2 | |

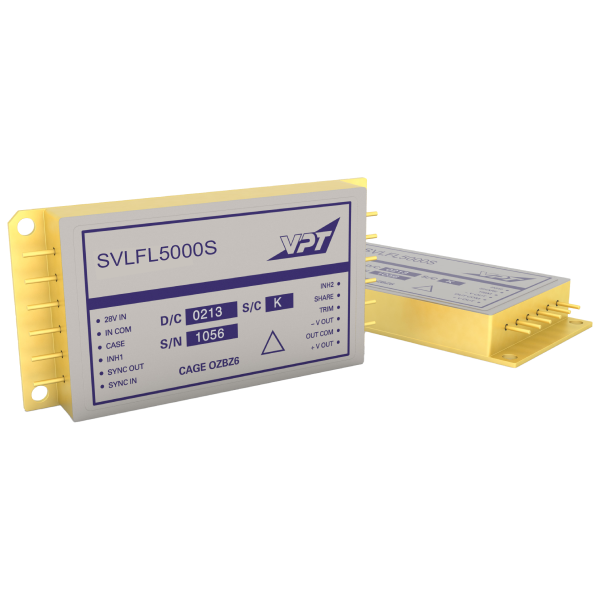

SVLFL5015S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | 15 V | 1 | |
SVLFL5012S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | 12 V | 1 | |
SVLFL5005S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | 5 V | 1 | |
SVLFL5015D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | ±15 V | 2 | |
SVLFL5012D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | ±12 V | 2 | |
SVLFL5005D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 100 W | ±5 V | 2 | |
SVLFL2805S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | 5 V | 1 | |
SVLFL2805D | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | ±5 V | 2 | |
SVFL2805S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | 5 V | 1 | |
SVFL2805D | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 100 W | ±5 V | 2 | |
DVFL289R5S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | 9.5 V | 1 | |
DVFL286R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | 6.3 V | 1 | |
DVFL2808S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | 8 V | 1 | |
DVFL2807S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | 7 V | 1 | |
DVFL2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | 5 V | 1 | |
DVFL289R5D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | ±9.5 V | 2 | |
DVFL286R3D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | ±6.3 V | 2 | |
DVFL2805D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 100 W | ±5 V | 2 | |
DV200-283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 100 W | 3.3 V | 1 | |
DV200-2703R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 270 V | 100 W | 3.3 V | 1 | |
VSC100-283R3S | Datasheet | DC-DC Converters | 30 krad(Si) | 42 MeV/mg/cm² | -55°C to +100°C | 28 V | 66 W | 3.3 V | 1 | |
VPT100-283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 66 W | 3.3 V | 1 | |
VPT100+283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +100°C | 28 V | 66 W | 3.3 V | 1 | |
SVRFL283R3S | Datasheet | DC-DC Converters | 100 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 66 W | 3.3 V | 1 | |
SVLFL503R3S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 50 V | 66 W | 3.3 V | 1 | |
SVLFL283R3S | Datasheet | DC-DC Converters | 60 krad(Si) | 85 MeV/mg/cm² | -55°C to +125°C | 28 V | 66 W | 3.3 V | 1 | |
SVFL283R3S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 66 W | 3.3 V | 1 | |
DVFL283R3S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 66 W | 3.3 V | 1 | |

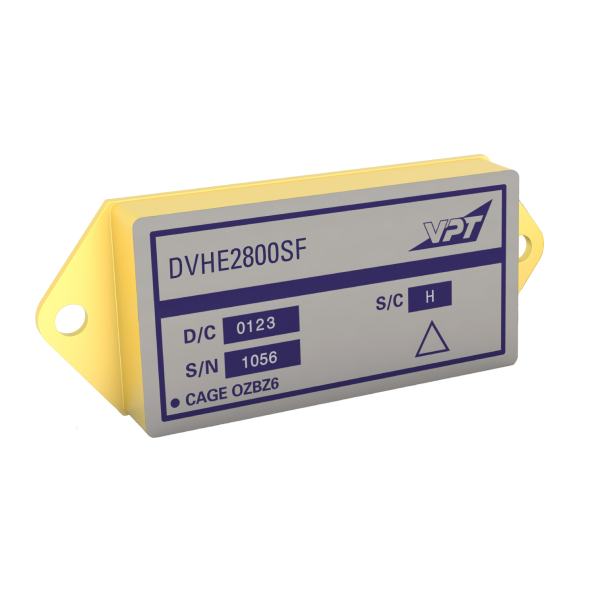

DVHE2805S | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 50 W | 5 V | 1 | |

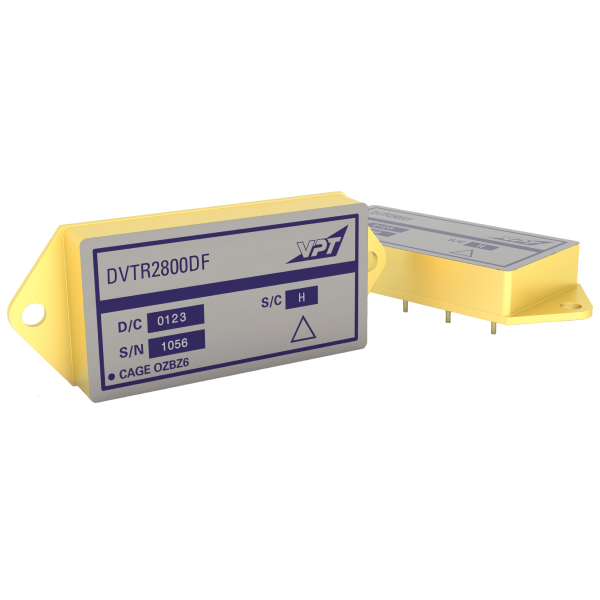

DVTR2815R7D | Datasheet | DC-DC Converters | NA | NA | -55°C to +125°C | 28 V | 40 W | ±15.7 V | 2 | |

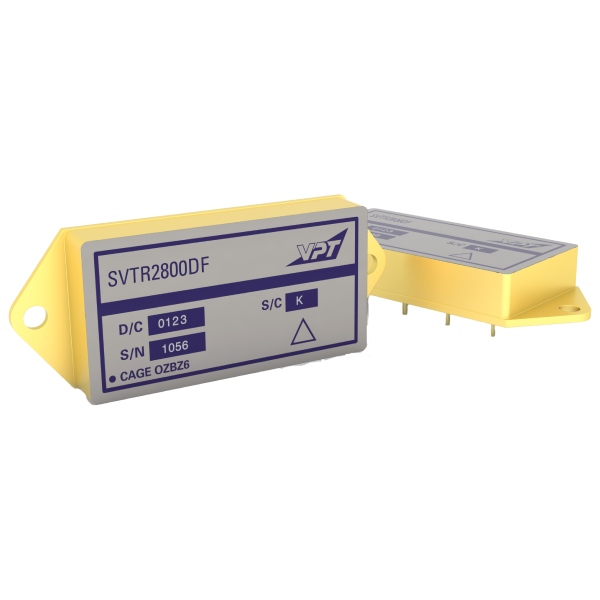

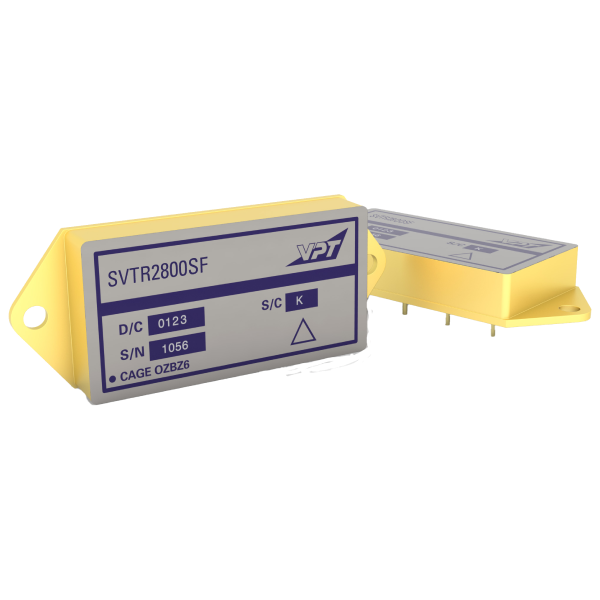

SVTR2815S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 40 W | 15 V | 1 | |
SVTR2812S | Datasheet | DC-DC Converters | 60 krad(Si) | 44 MeV/mg/cm² | -55°C to +125°C | 28 V | 40 W | 12 V | 1 |
