SVFL2800D

DC-DC Converters

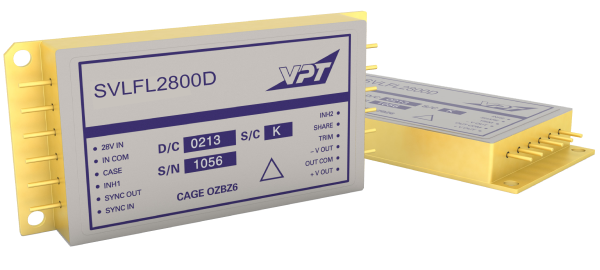

SVLFL2800D Series

The SVLFL Series of space qualified DC-DC converters is specifically designed for the harsh radiation environment of space applications. Performance is guaranteed through the use of hardened semiconductor components, radiation lot acceptance testing (RLAT) of non-hardened components, and analysis.

View DatasheetRequest a QuoteContact Sales

Select Output Voltage

±5 V ±12 V ±15 V

Output Power/Current100 W, 110 W, 120 W
Output Voltage±5 V, ±12 V, ±15 V
Nominal Input Voltage28 V
Continuous Input Voltage Range16 V to 40 V
# of Outputs2
Total Dose (TID)60 krad(Si)
Single Event Effects (SEE)85 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962L19211
EMI FilterDVME28
Thermal PadsTP-001 or TP-019

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
