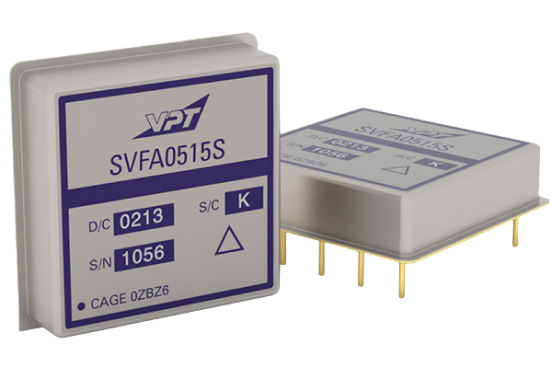

SVFA0515 S

Point of Load DC-DC Converters

SVFA Series

The SVFA Series of space qualified point of load DC-DC converters is specifically designed for the harsh radiation environment of space applications. Performance is guaranteed through the use of hardened semiconductor components, radiation lot acceptance testing (RLAT) of non-hardened components, and analysis.

View Datasheet
Request a QuoteContact Sales

Select Output Current

10 A 10 A (gull-wing)15 A 15 A (gull-wing)

Output Power/Current10 A, 15 A
Output Voltage0.8 V to 3.4 V
Nominal Input Voltage5 V
Continuous Input Voltage Range3.5 V to 7 V
# of Outputs1
Total Dose (TID)40 krad(Si)
Single Event Effects (SEE)85 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962P16212

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
