SVRHF2800 D

SVRHF2800D Series

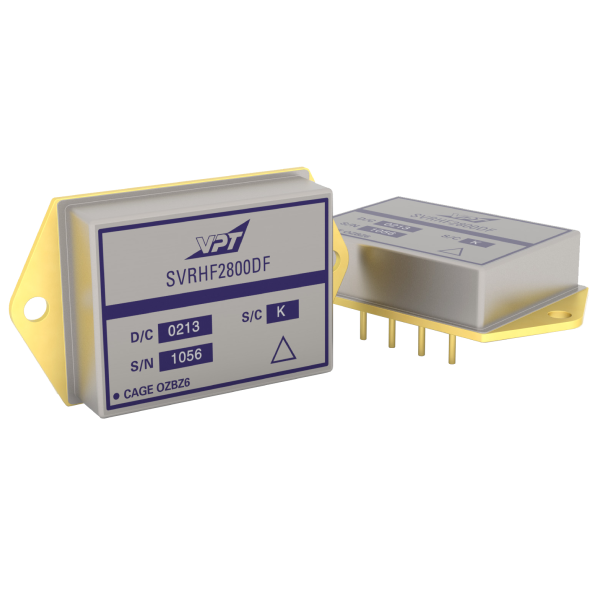

SVRHF2812D DC-DC Converter

The SVRHF Series of space qualified DC-DC converters is specifically designed for the harsh radiation environment of space applications and is designed in accordance with Aerospace TOR requirements. Performance is guaranteed through the use of hardened semiconductor components, radiation lot acceptance testing (RLAT) of non-hardened components, and analysis.

View DatasheetRequest a QuoteContact Sales

Select Output Voltage

Output Power/Current15 W
Output Voltage±12 V
Nominal Input Voltage28 V
Continuous Input Voltage Range18 V to 40 V
# of Outputs2
Total Dose (TID)100 krad(Si)
Single Event Effects (SEE)85 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962R13232
EMI FilterSVRMH28
Thermal PadsTP-002 or TP2-002

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
