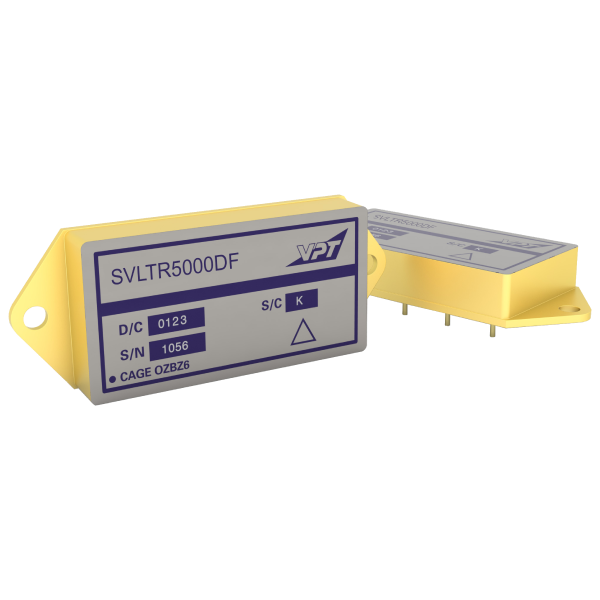

SVLTR5000 DF

SVLTR5000D Series

SVLTR5005D DC-DC Converter

The SVLTR Series of space qualified DC-DC Converters is specifically designed for the harsh radiation environment of space applications. Performance is guaranteed through the use of hardened semiconductor components, radiation lot acceptance testing (RLAT) of non-hardened components, and analysis.

View DatasheetRequest a QuoteContact Sales

Select Output Voltage

Output Power/Current30 W
Output Voltage±5 V
Nominal Input Voltage50 V
Continuous Input Voltage Range30 V to 60 V
# of Outputs2
Total Dose (TID)60 krad(Si)
Single Event Effects (SEE)85 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962L22212
EMI FilterDVMD50
Thermal PadsTP-003 or TP2-003

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
