SVHF2800SF

SVHF2800S Series

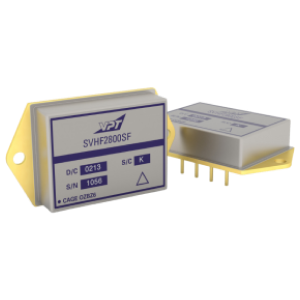

SVHF2815S DC-DC Converter

The SVHF Series of space qualified DC-DC converters is specifically designed for the harsh radiation environment of space applications. Performance is guaranteed through the use of hardened semiconductor components, radiation lot acceptance testing (RLAT) of non-hardened components, and analysis.

View DatasheetRequest a QuoteContact Sales

Select Output Voltage

Output Power/Current20 W
Output Voltage15 V
Nominal Input Voltage28 V
Continuous Input Voltage Range15 V to 50 V
# of Outputs1
Total Dose (TID)60 krad(Si)
Single Event Effects (SEE)44 MeV/mg/cm²
Temperature Range-55°C to +125°C
SMD#5962P11218
EMI FilterDVMH28
Thermal PadsTP-002 or TP2-002

Request a Quote

This product is not currently available for purchase through our online store for North American customers. Please request a quote to receive a lead time.
